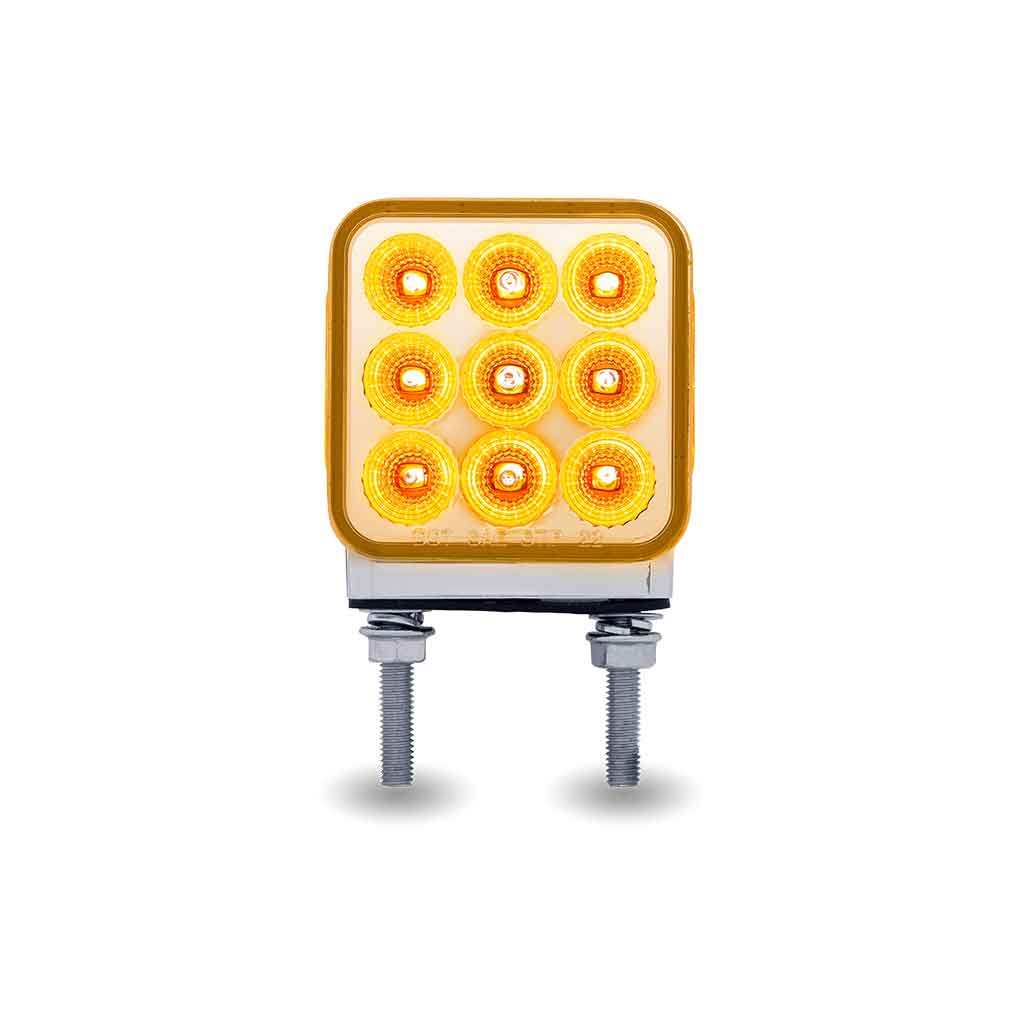

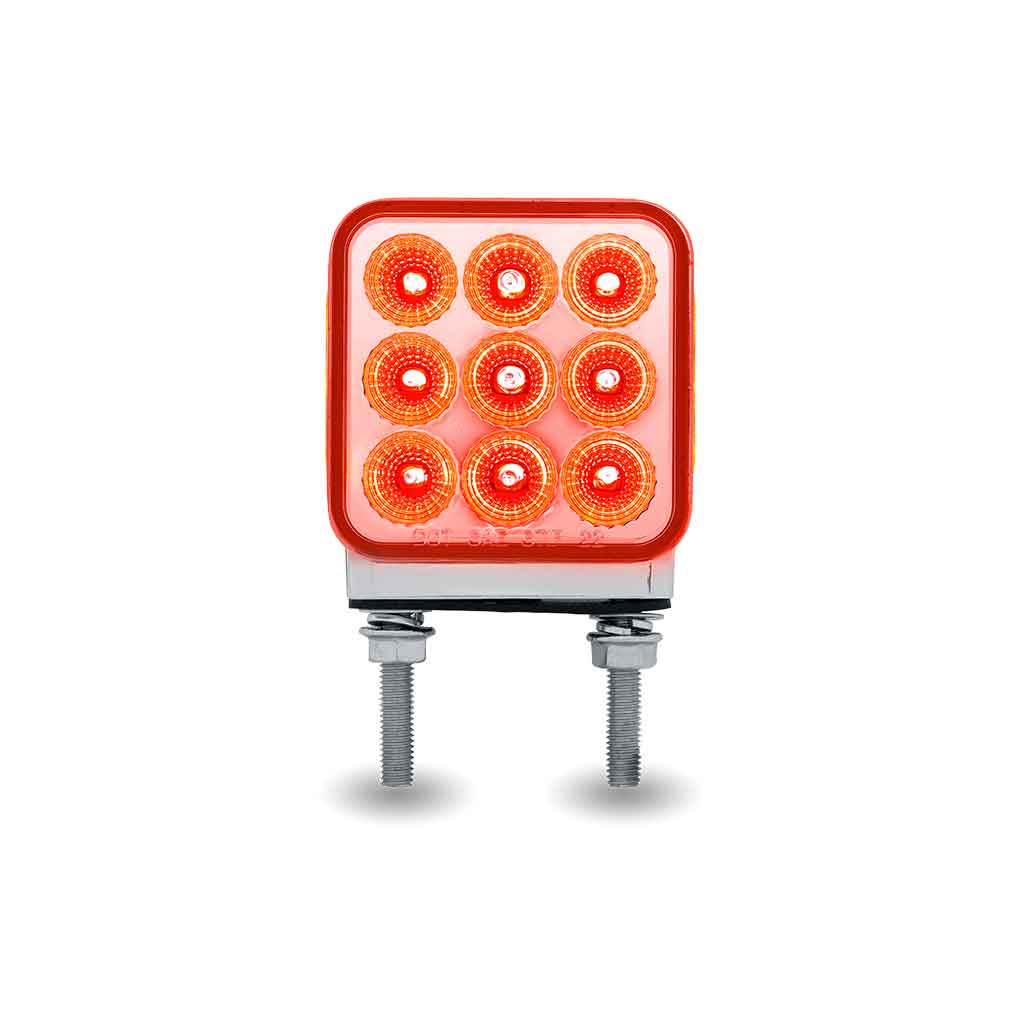

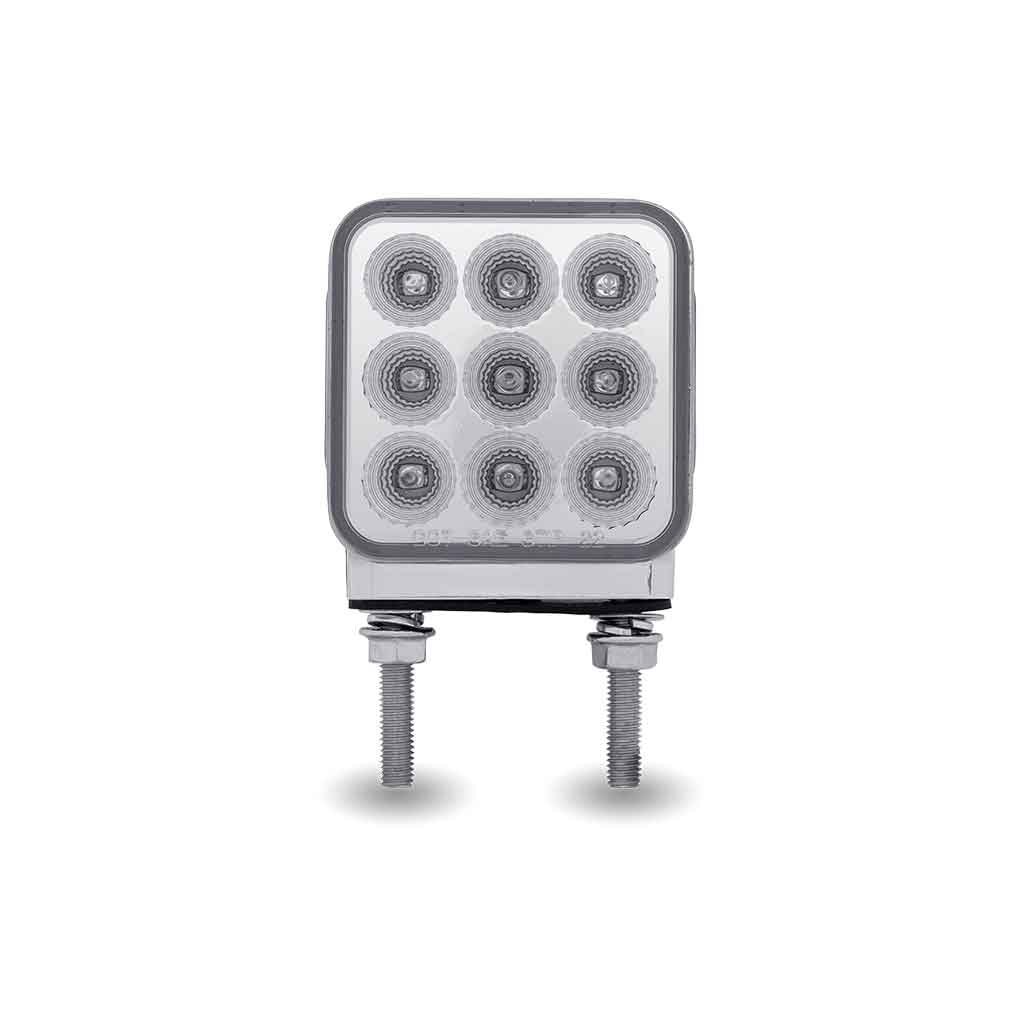

Upgrade your truck with the Trux Mini Double Face Square Reflector LED Light, designed to provide dependable stop, turn, and tail light functions in a compact and modern package. Featuring a sleek clear lens design and bright amber/red LED illumination, this light enhances visibility while giving your vehicle a clean, custom appearance.

Built with 30 high-output LEDs, this DOT-compliant light delivers reliable performance for semi trucks, trailers, heavy-duty vehicles, and custom builds. The durable polycarbonate lens resists cracking, fading, and impact damage, while the rugged aluminum die-cast housing provides long-lasting durability in demanding road conditions.

Its compact 3-inch square design, double-post mounting system, and IP67 waterproof rating make it an excellent choice for replacement, upgrade, and custom lighting applications.

Features

• Compact 3" mini square LED light

• Functions as a stop, turn, and tail light

• Clear lens with amber/red LED illumination

• Double-face design for enhanced visibility

• 30 high-output LED diodes

• DOT compliant

• Durable polycarbonate lens

• Crack and impact-resistant construction

• Aluminum die-cast housing

• Double-post installation

• IP67 waterproof and dustproof rating

• Ideal for trucks, trailers, and custom applications

Specifications

• Part Number: TLED-DS3XC2

• Style: Double Face, Fender, Mini, Square

• Size: 3"

• Function: Stop / Turn / Tail

• LED Count: 30 Diodes

• Operating Voltage: 12.8 Volts

• Current Draw: 150–230 mA @ 12.8V

• Lens Color: Clear

• LED Color: Amber/Red

• Lens Material: Polycarbonate

• Housing Material: Aluminum Die Cast

• Waterproof Rating: IP67

• Product Dimensions: 3.24" L x 1.34" W x 3.5" H

Installation

For stop, turn, and tail light functions, connect the positive and negative wires from the light to the corresponding vehicle wiring.

Package Includes

• Sold individually

Perfect for semi trucks, trailers, heavy-duty vehicles, and custom builds looking for compact, reliable stop, turn, and tail lighting with a modern clear-lens appearance.
