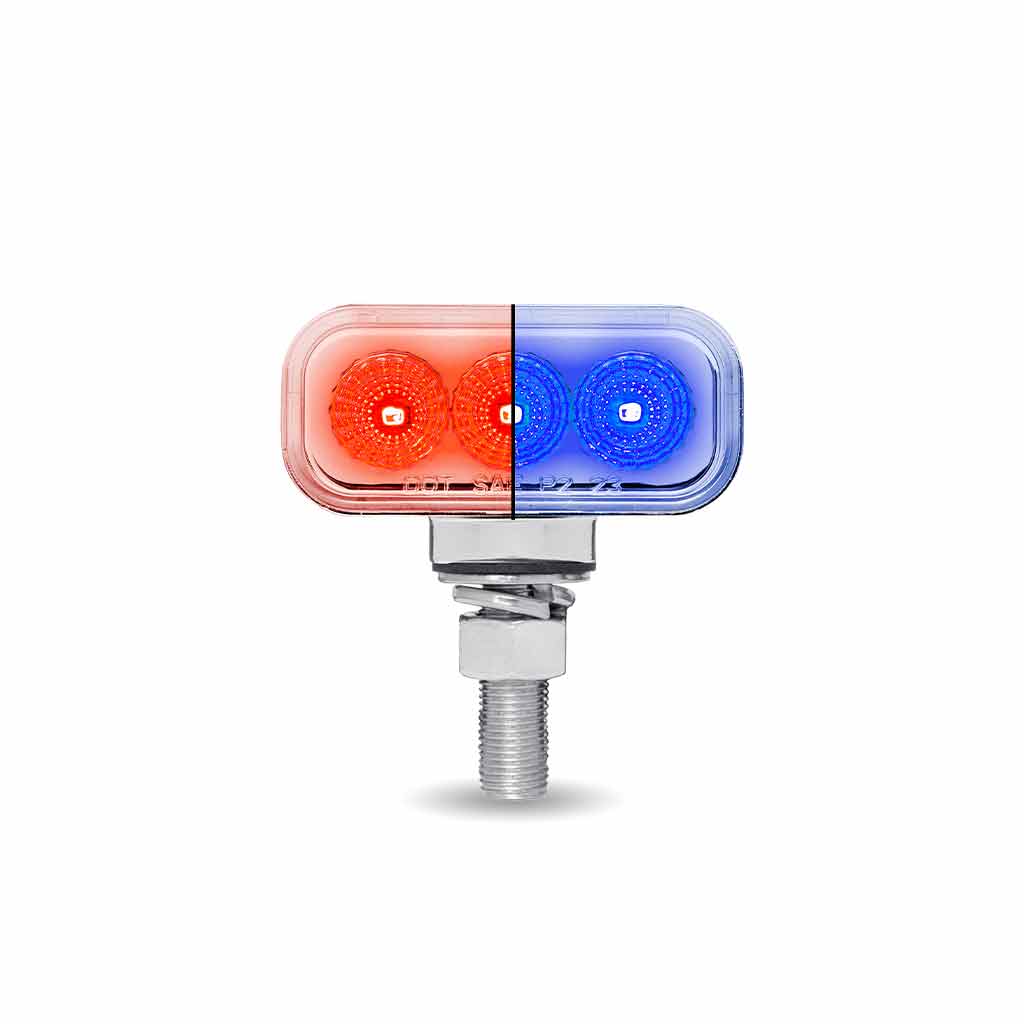

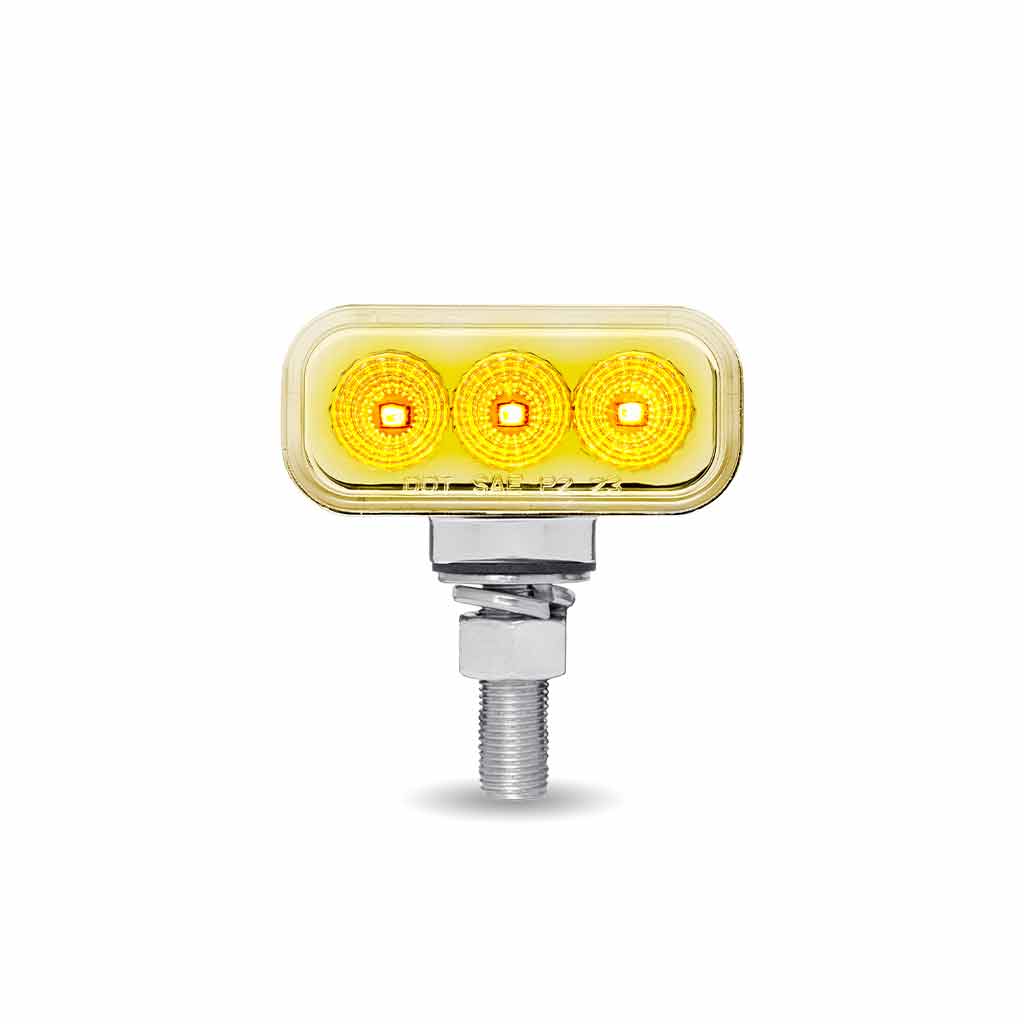

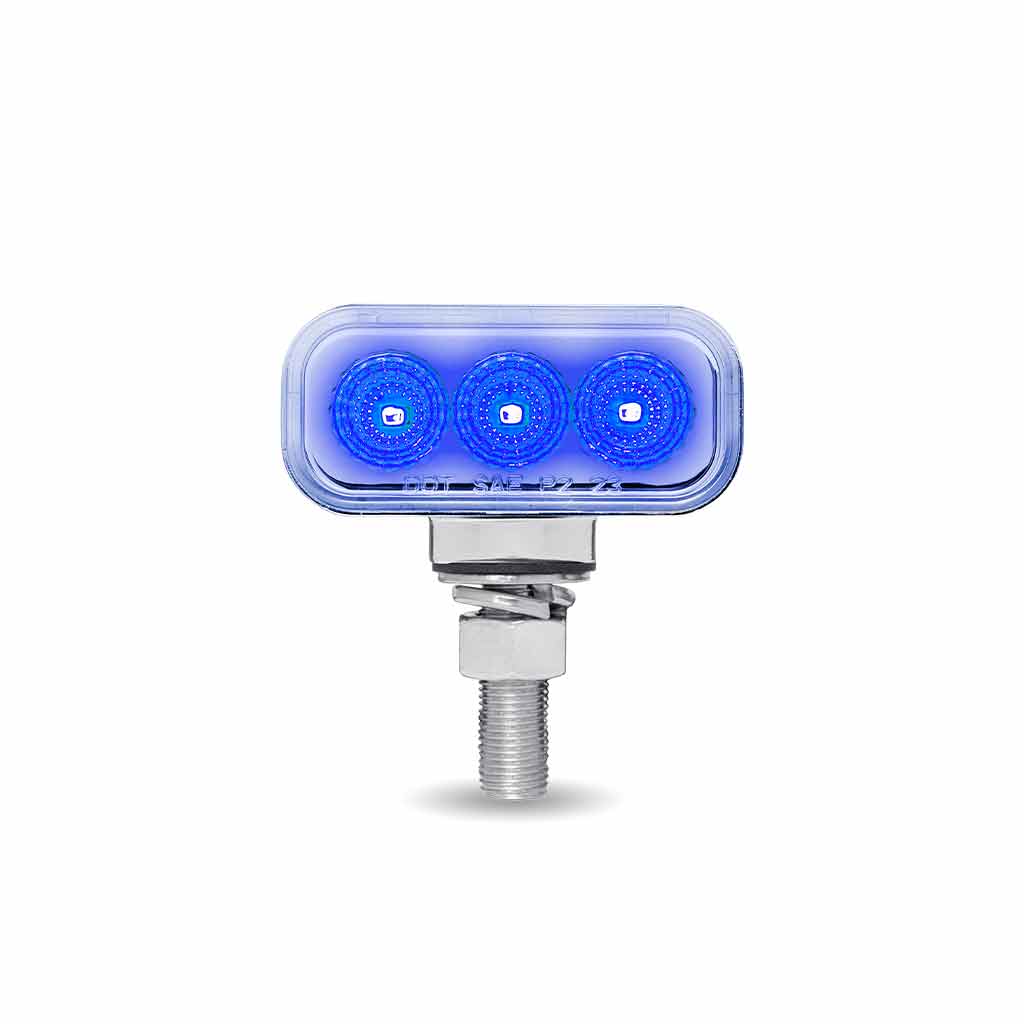

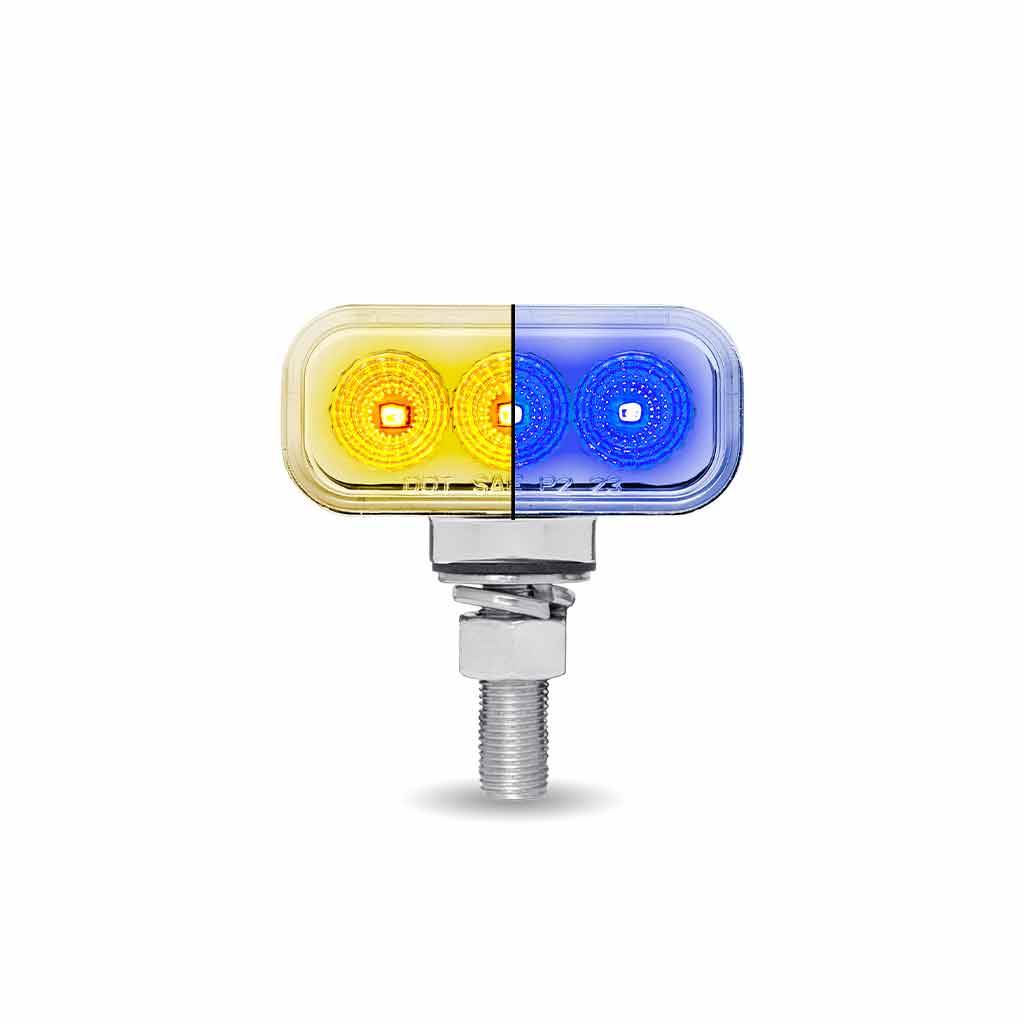

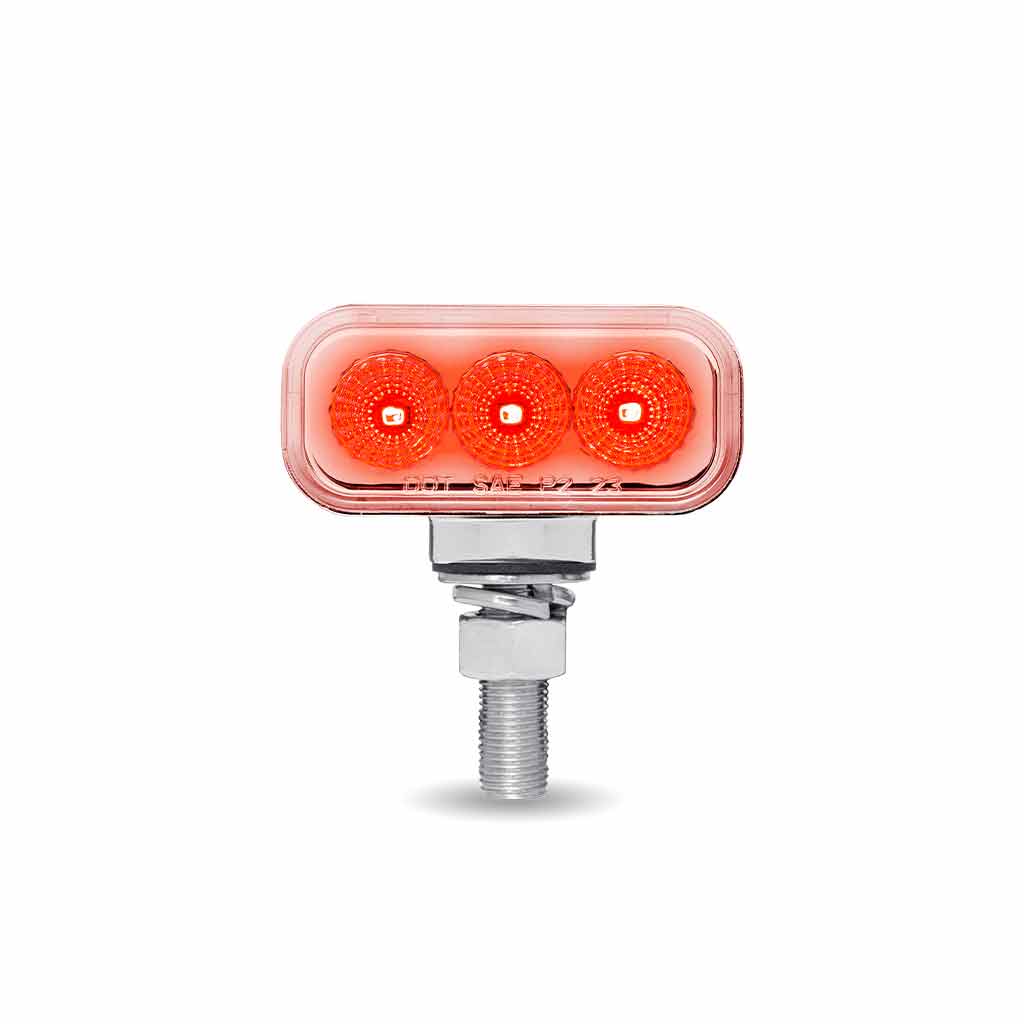

Add advanced functionality and custom styling to your truck with the Trux TLED-DR1XB Dual Revolution LED Light. Featuring Industry Leading Dual Revolution Technology, this compact double-face light combines a DOT-compliant amber/red clearance marker light with a vibrant blue auxiliary light, giving you two lighting functions in one unit.

Built with 20 high-output LEDs, this light delivers excellent visibility while maintaining a sleek, modern appearance thanks to its clear lens design. The durable polycarbonate lens resists cracks and impact damage, while the rugged zinc alloy housing is built to withstand demanding road conditions.

Its compact 1.5" x 3" size, single-post mounting system, and IP67 waterproof rating make it an excellent choice for semi trucks, trailers, show trucks, and custom vehicle applications.

Features

• Industry Leading Dual Revolution Technology

• Double-face rectangular LED light

• Amber/red clearance marker function

• Blue auxiliary lighting function

• 20 high-output LED diodes

• DOT compliant to auxiliary function

• Clear lens design

• Durable polycarbonate lens

• Crack and impact-resistant construction

• Zinc alloy housing

• Single-post installation

• IP67 waterproof and dustproof rating

• Ideal for trucks, trailers, and custom applications

Specifications

• Part Number: TLED-DR1XB

• Style: Double Face, Fender, Mini, Rectangular

• Size: 1.5" x 3"

• Function 1: Clearance Marker

• Function 2: Blue Auxiliary

• LED Count: 20 Diodes

• Operating Voltage: 12 Volts

• Function 1 Amperage: 78 mA

• Function 2 Amperage: 78 mA

• Lens Color: Clear

• LED Color: Amber / Red / Blue

• Lens Material: Polycarbonate

• Housing Material: Zinc Alloy

• Waterproof Rating: IP67

• Product Dimensions: 3.21" L x 1.22" W x 1.79" H

Installation

For clearance marker and auxiliary functions, connect the positive and negative wires from the light to the corresponding vehicle wiring.

Package Includes

• Sold individually

Perfect for semi trucks, trailers, show trucks, and custom builds looking for dependable marker lighting combined with eye-catching blue auxiliary illumination.
