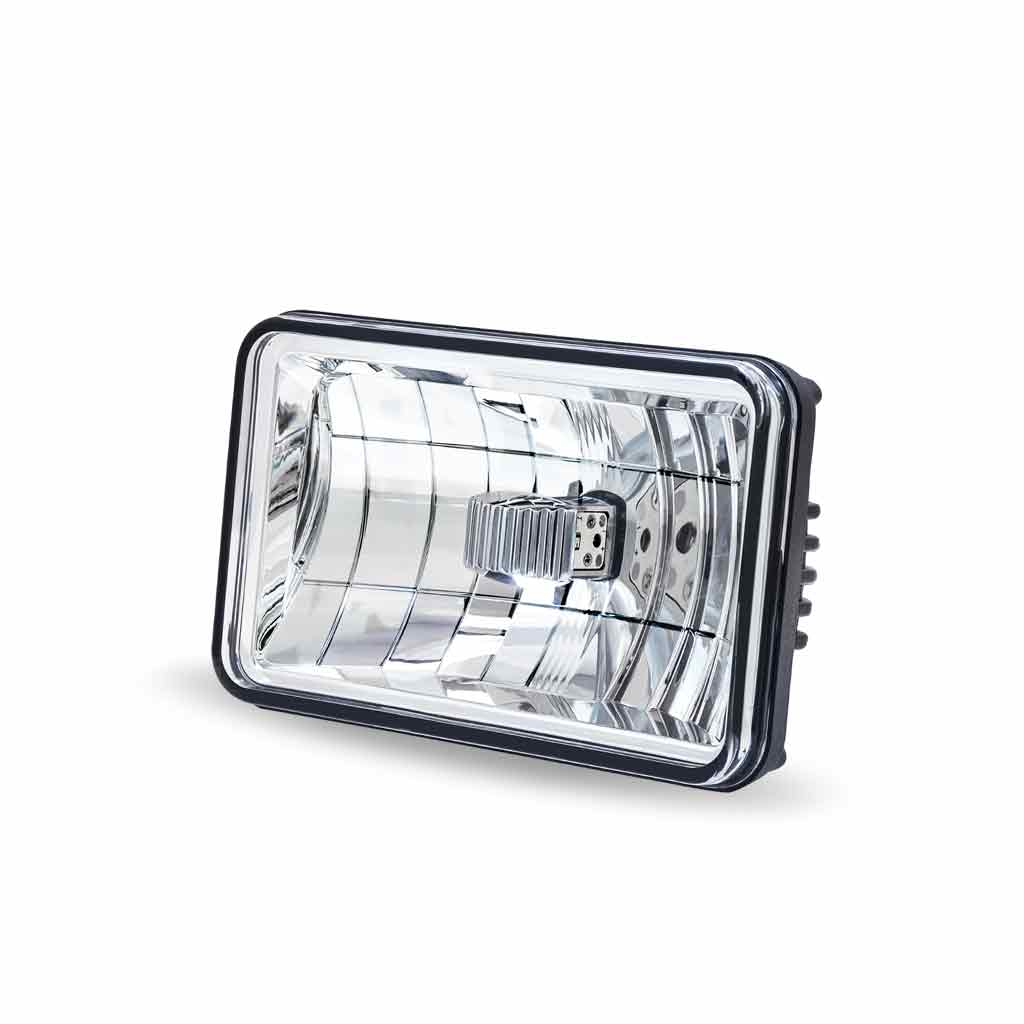

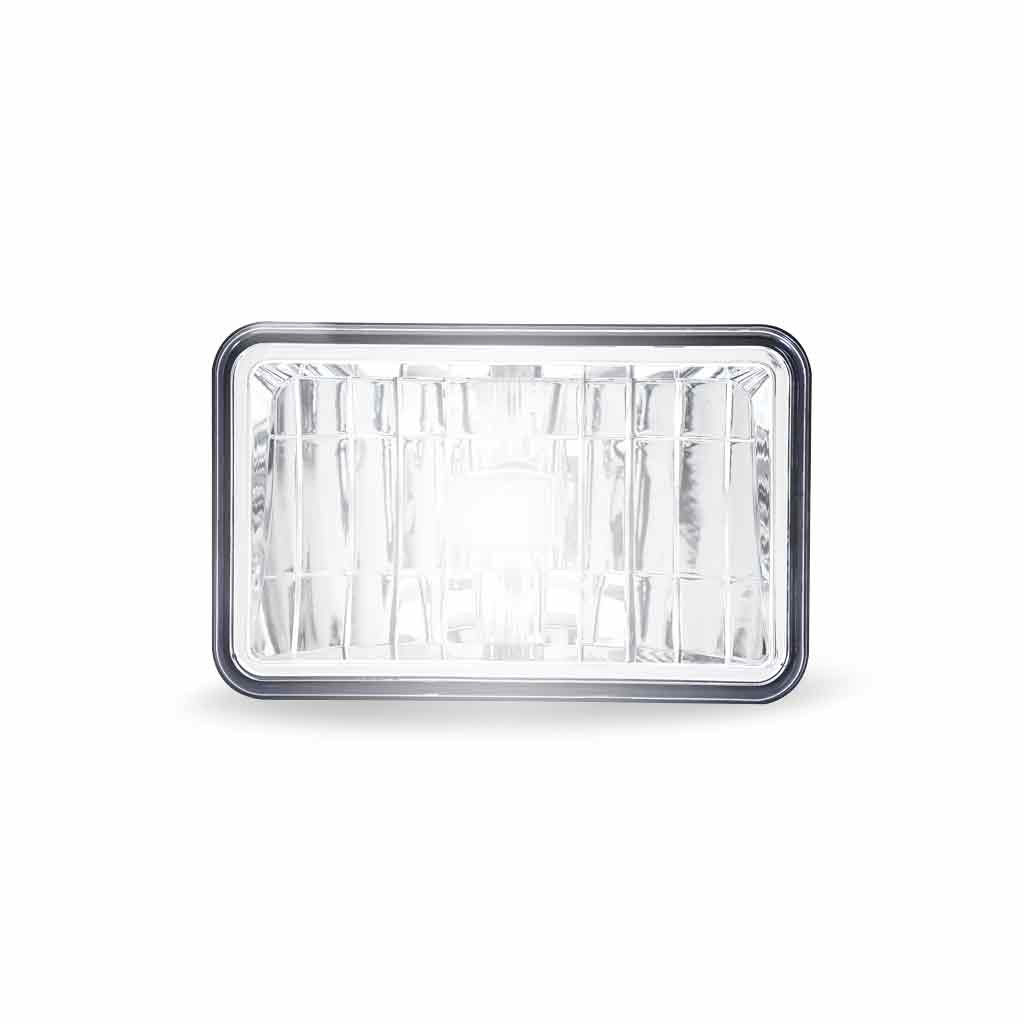

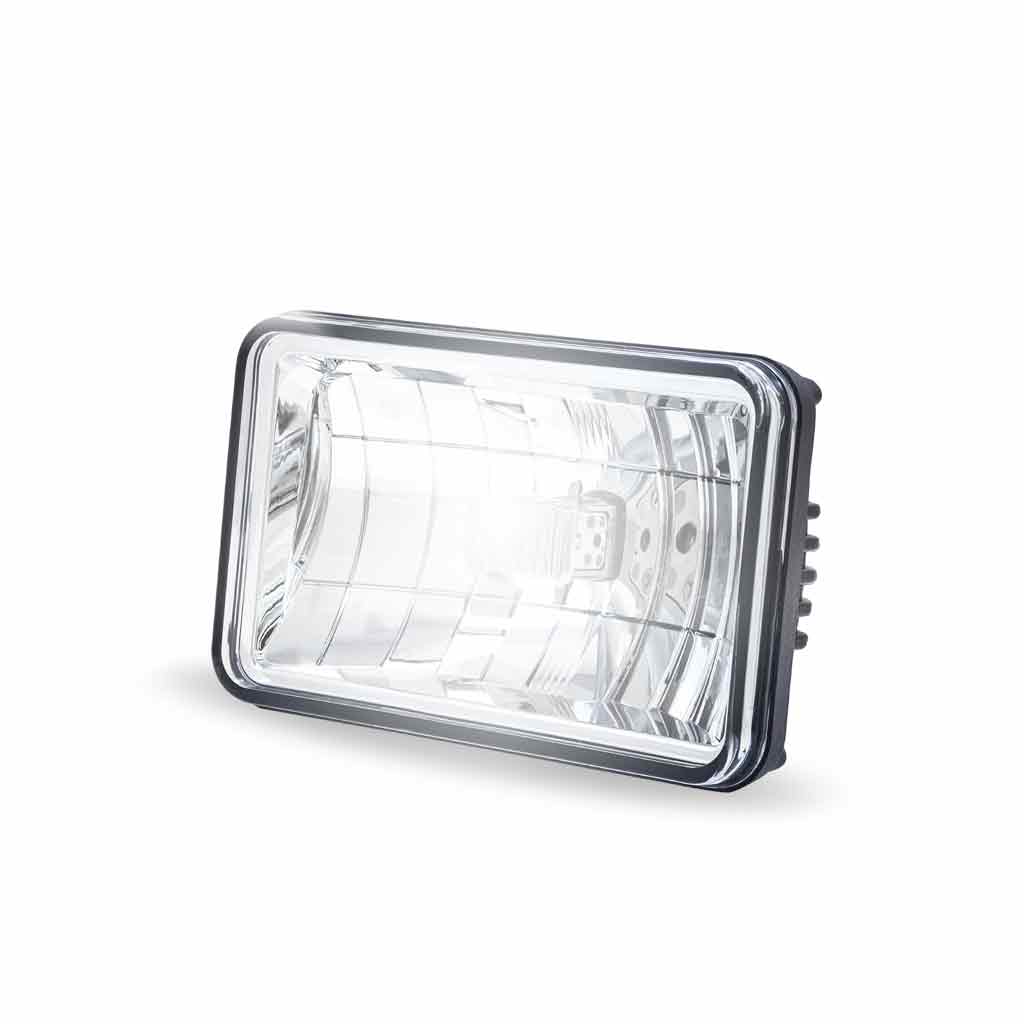

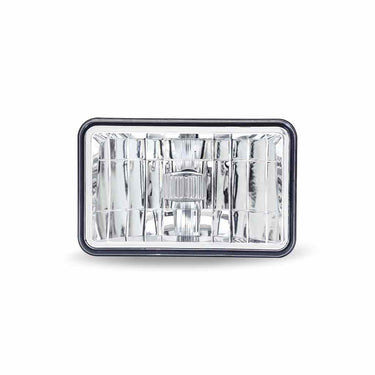

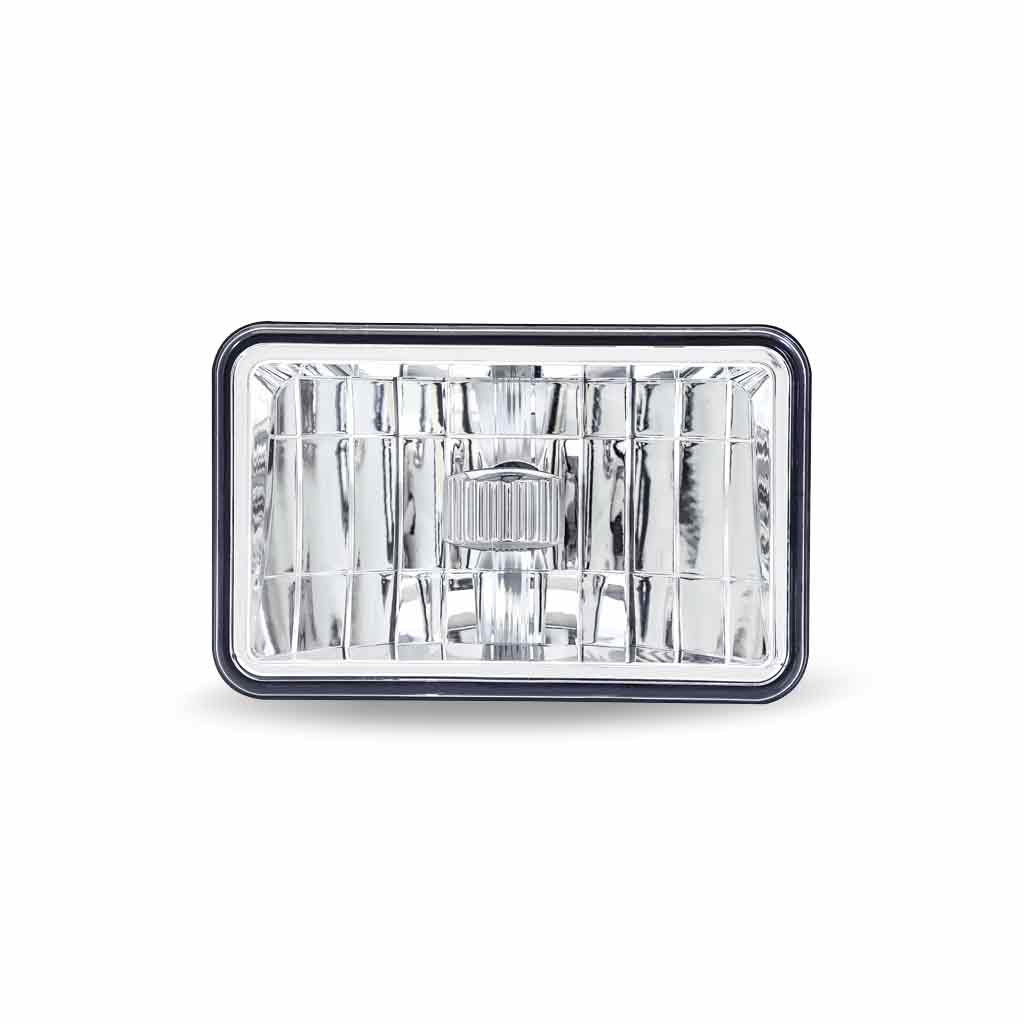

Upgrade your truck’s lighting with the 4" x 6" LED Reflector Chrome Headlight – Low Beam (TLED-H2). Designed to provide significantly brighter illumination than traditional halogen headlights, this LED headlight delivers 1,700 raw lumens and 780 effective lumens.

Featuring a chrome interior, clear polycarbonate lens, and die-cast aluminum housing, this rectangular headlight is built for dependable performance. It operates on 9–24 volts, is compatible with daytime running lights (DRL), and features a universal H4 connector.

A headlight conversion plug (TPIG-H1) is included for installation.

Visit Kings Chrome Shop for more premium truck accessories, chrome products, and custom truck parts.

Can't Find What You're Looking For?

We carry a wide range of truck parts, accessories and colors, and not all items are listed online. Contact us to check availability or special order options.

Call or Text: +1 (416) 388-5647
Email: info@kingschrome.com

Features

• SKU: TLED-H2
• Style: Rectangular LED reflector headlight
• Size: 4" x 6"

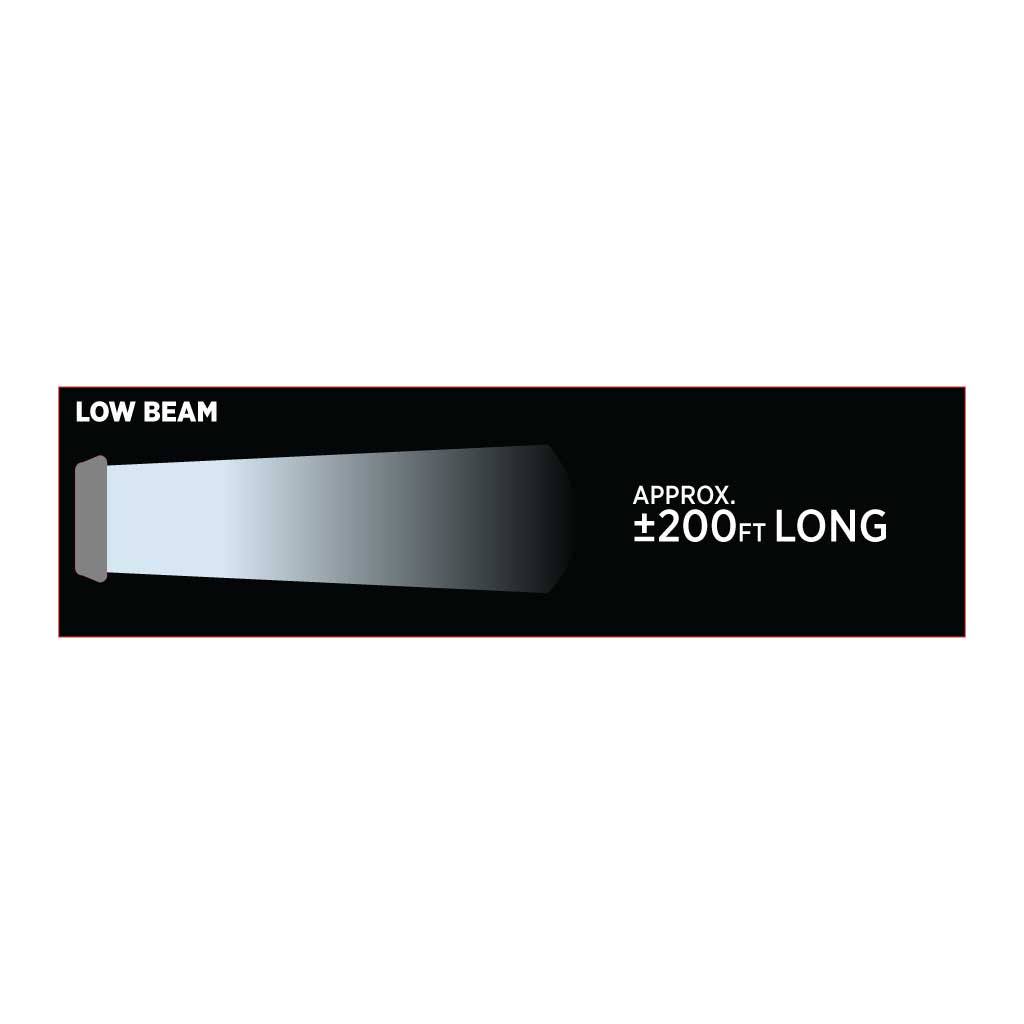

• Function: Low beam
• LED Power: 12 watts
• Raw Light Output: 1,700 lumens
• Effective Light Output: 780 lumens
• Color Temperature: 6800K
• Operating Voltage: 9–24 volts
• DRL Compatible: Yes
• Current Draw at 12V: 1 amp
• Diodes: 2
• Interior Color: Chrome
• Lens Color: Clear
• Lens Material: Polycarbonate

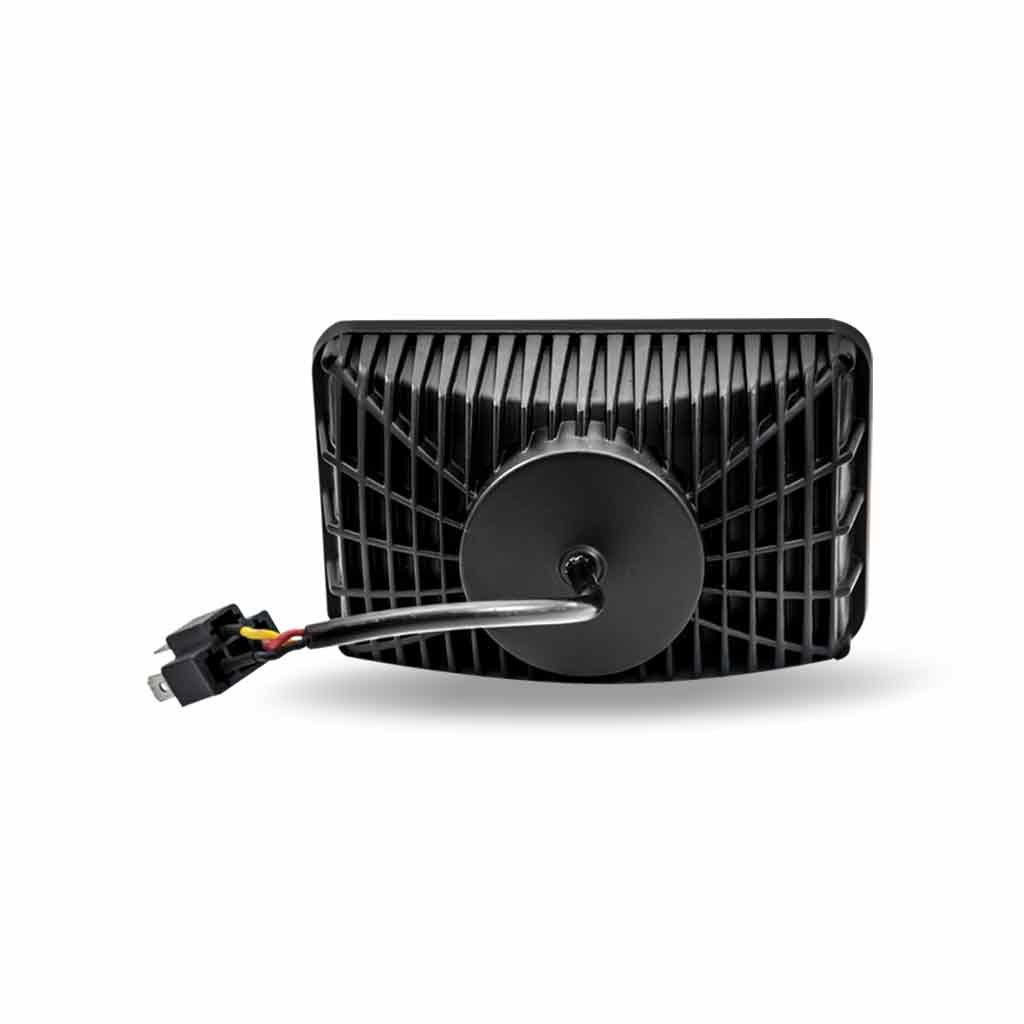

• Housing Material: Die-cast aluminum

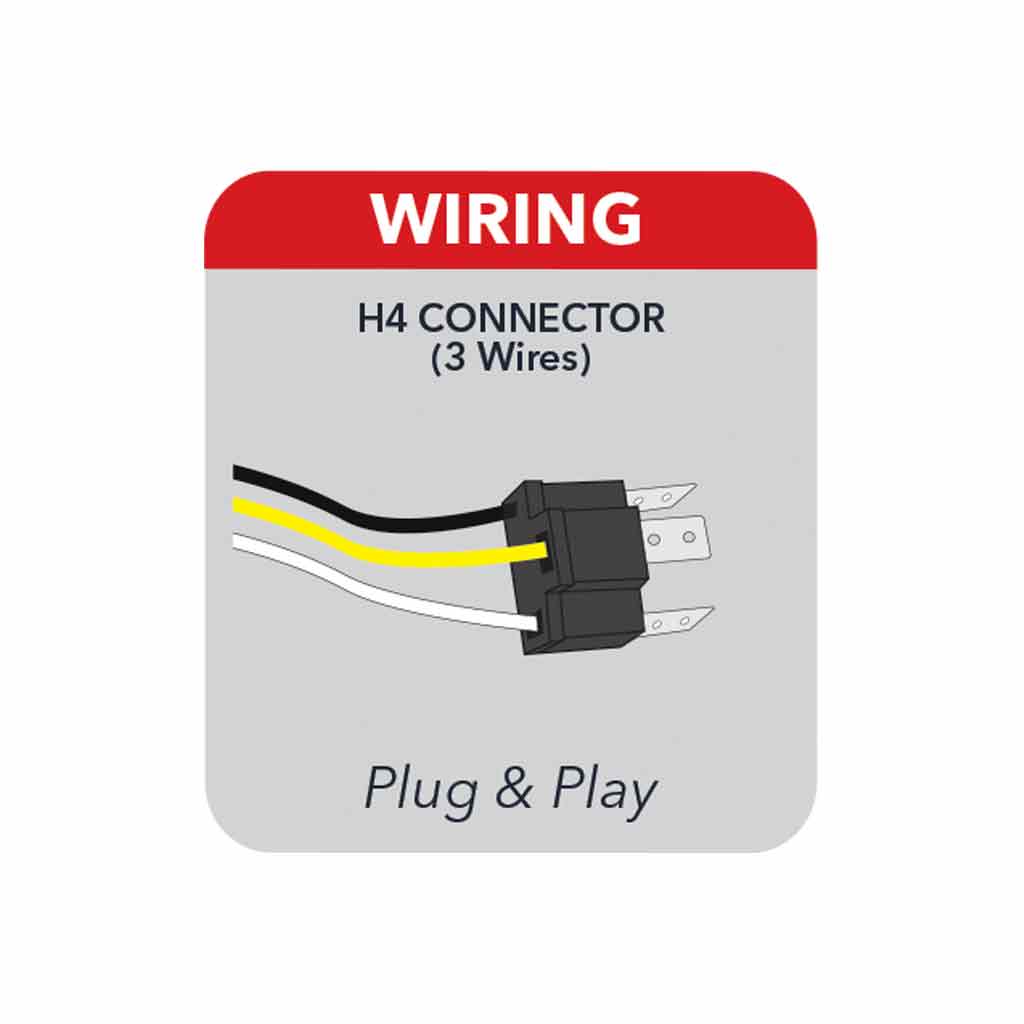

• Connector: Universal H4 connector
• Retrofit Compatibility: 4652, H4652, H4656, H4662, H4739, H5062
• Wire Gauge: 16 AWG
• Waterproof Rating: IP67
• Compliance: CMVSS-108, DOT/SAE, FMVSS-108

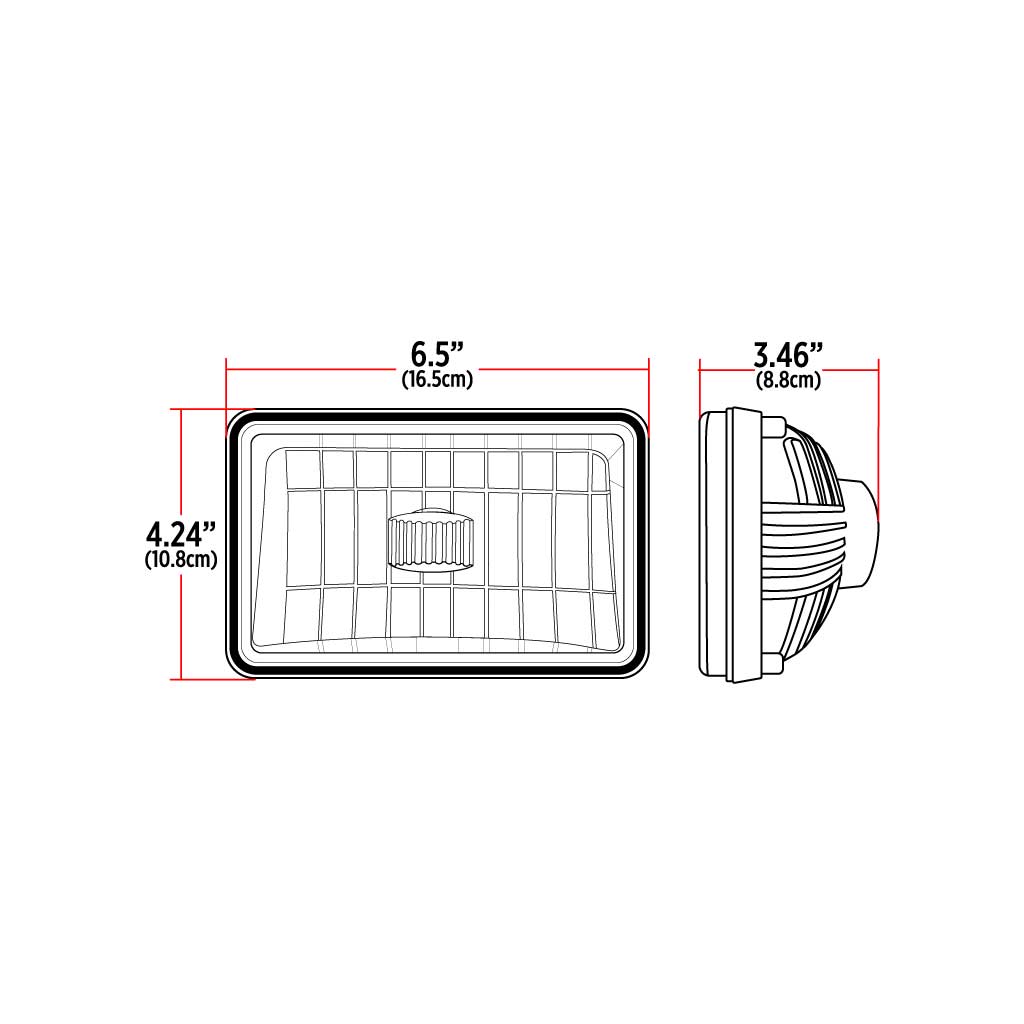

• Product Dimensions: 6.5" L x 3.46" W x 4.24" H
• Package Dimensions: 7" L x 3.5" W x 4.5" H
• Package Weight: 1.5 lbs
• Package Quantity: 1
• Sold Individually

What's Included

• 1 × TLED-H2 LED Reflector Chrome Headlight
• 1 × H4 Conversion Plug (TPIG-H1)

Important

Verify the headlight size, connector type, and retrofit compatibility before ordering. Confirm that this low-beam headlight is suitable for your truck’s application.
